Ozone-UV composite mode unlike the ozone alone mode, high and was further improved sterilization and deodorant oxidizing power by us to promote the generation of a strong various large curls than ozone by irradiating ultraviolet rays to the ozone. It is the efficiency ozone water sterilizer.
- Application product of patented technology (Patent No. 10-0824383)
- Small and Medium Enterprise Agency performance certified products (certification No. 12-177)
- Food and Drug Administration performance test certified products
- Procurement Agency Excellent Product (specify No. 2,011,018) / priority purchase target
- Improvement of sterilization and deodorant oxidizing power by various large Carl generation
- Ozone water concentration monitor (0RP system) equipped
Norovirus
The main cause bacteria recently occurred food poisoning accident, "norovirus" (cause bacteria 2006 ToshiKyo Hitoshi of local school food poisoning occur even "norovirus") increasing trend of groundwater "norovirus" contaminated areas.
Japan IEMT / AIST, TMIPH (National Environmental Technology Institute, on the Tokyo public health) joint research material
-
Norovirus is, has a resistance to chlorine-based disinfectants and Arururu disinfectants, high concentrations of chlorine disinfectants may be to lower the taste of the shellfish.
- Snip - -
Using the oxygen fine bubbles contained about 2% ozone, it was able to sterilize "Norovirus".
- Snip -
Use
- Schools, industry, associations meals single water, such as military facilities, food, instruments. Sterilization, such as the workplace, cleaning, kitchen water for deodorizing applications
- Water disinfection treatment of the dip type fountain
- Food plant production water facility
- Recycling system of rainwater, recycling the number of sterilization processing of heavy water system
- Sterilization of the cooling tower circulating water
Installation cases
-
School cantine
-
Seafood processing plants
-
Excellent recycling treatment plant
-
Dip type fountain
-
Cooling tower
Performance Test Results
Result of hazardous substances treatment test
| The item | reference value | processing before | Ratio water treatment | removal rate |
|---|---|---|---|---|
| Common bacterial | 100(CFU/㎖) | 14,000 | 0 | 100% |
| E. coli | non-detection / 100㎖ | training | not detected | 100% |
| Lead | 0.05mg/ℓ or less | 0.35 | 0.004 or less | 100% |
| Mercury | 0.001mg/ℓ or less | 0.10 | 0.001 or less | 99.6% |
| Arsenic | 0.05mg/ℓ or less | 0.24 | 0.005 or less | 99.6% |
| Detergent | 0.5mg/ℓ or less | 5.15 | 0.01 or less | 99.8% |
| Phenol | 0.005mg/ℓ or less | 0.084 | 0.001 or less | 99.8% |
| Trihalomethane | 0.1mg/ℓ or less | 0.55 | 0.005 or less | 99.1% |
Result of bactericidal effect test
| Test strain | unit | initial number of bacteria | ozone treatment after 1 minute (sterilization rate) |
|---|---|---|---|
| Undetectable of E. coli | CFU/㎖ | 150,000 | undetectable(100%) |
| Staphylococcus aureus | CFU/㎖ | 43,000 | undetectable(100%) |
| Streptococcal | CFU/㎖ | 77,000 | undetectable(100%) |
| Bacillus bacteria | CFU/㎖ | 43,000 | undetectable(100%) |
| Salmonell | CFU/㎖ | 57,000 | undetectable(100%) |
| Undetectable of Pseudomonas aeruginosa | CFU/㎖ | 150,000 | undetectable(100%) |
Product Specifications
| Model | Food and Drug Administration certification performance test report | discharge rate(tons/time) | recommendation be able to challenge the quantity | size(cm) (W x D x H) |
weight (kg) |
power (V x on the x KW) |
|
|---|---|---|---|---|---|---|---|
| Ozone water | Purified Water | ||||||
| JEUO-1500 | H110000372 &377 | 1.5 | 1.0(Option) | 2 | 60 x 60 x 127 | 70 | 220 x one way x 0.8 |
| JEUO-2400 | H110000373 &378 | 2.4 | 1.0(Option) | 3 | 80 x 75 x 138 | 100 | 220 x one way x 1.0 |
| JEUO-4000 | H110000374 &379 | 4.0 | 2.0(Option) | 5 | 95 x 80 x 154 | 250 | 220 x one way x 1.5 |
| JEUO-6000 | H110000375 &380 | 6.0 | 3.0(Option) | 7 | 115 x 85 x 154 | 350 | 220 x one way x 2.5 |
| Model | JEUO-1500 |
|---|---|
| Food and Drug Administration certification performance test report | H110000372 &377 |
| discharge rate(tons/time)-Ozone water | 1.5 |
| discharge rate(tons/time)-Purified Water | 1.0(Option) |
| recommendation be able to challenge the quantity | 2 |
| size(cm)(W x D x H) | 60 x 60 x 127 |
| weight(kg) | 70 |
| power (V x on the x KW) | 220 x one way x 0.8 |
| Model | JEUO-2400 |
| Food and Drug Administration certification performance test report | H110000373 &378 |
| discharge rate(tons/time)-Ozone water | 2.4 |
| discharge rate(tons/time)-Purified Water | 1.0(Option) |
| recommendation be able to challenge the quantity | 3 |
| size(cm)(W x D x H) | 80 x 75 x 138 |
| weight(kg) | 100 |
| power (V x on the x KW) | 220 x one way x 1.0 |
| Model | JEUO-4000 |
| Food and Drug Administration certification performance test report | H110000374 &379 |
| discharge rate(tons/time)-Ozone water | 4.0 |
| discharge rate(tons/time)-Purified Water | 2.0(Option) |
| recommendation be able to challenge the quantity | 5 |
| size(cm)(W x D x H) | 95 x 80 x 154 |
| weight(kg) | 250 |
| power (V x on the x KW) | 220 x one way x 1.5 |
| Model | JEUO-6000 |
| Food and Drug Administration certification performance test report | H110000375 &380 |
| discharge rate(tons/time)-Ozone water | 6.0 |
| discharge rate(tons/time)-Purified Water | 3.0(Option) |
| recommendation be able to challenge the quantity | 7 |
| size(cm)(W x D x H) | 115 x 85 x 154 |
| weight(kg) | 350 |
| power (V x on the x KW) | 220 x one way x 2.5 |

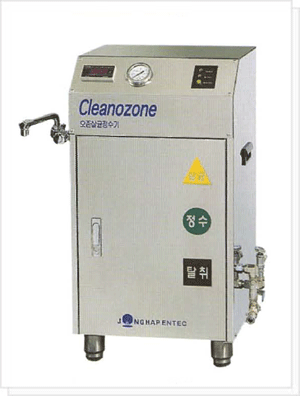

Features
Independently developed ozone generator (patent 155462 No.) and dissolver using various bacterial sterilization and toxic substances and pesticide residues etc. offer drinkable and functionally ozone purified water.
-
Step 1 pretreatment filtration device
High-density filter of 5 microns placed in double reduce the turbidity, also remove such impurities contained in the water.
-
Step 2 ozone dissolution equipment and double ozone cracking unit
By dissolving the ozone gas generated by the ozone generator to stay in the water by a specified period of time, rapid sterilization and various bacteria, and securely. In addition to cosmetic ozone gas in water has to be harmless to the human body as a handful of times by reducing the oxygen through the ozone decomposition device.
-
Step 3 activated carbon filtration device
To remove residual material such as ozone generated in the oxidation process to the use of antibacterial activated carbon, and adsorb the residual ozone in the water, to inhibit the growth of bacteria within the filter, but also to break.
Use
- Ship, large restaurant, and the kitchen disinfection of drinking water plants, etc., disinfection, deodorization
- Food, beverages, such as water for manufacturing
- Rust occurs in the vessel piping aging, can this water purifier clean kitchen water supply in one.
Product Specifications
| Model | water supply criteria | power | water purification system | filter material | drinking | Ozone water | Product Size | weight |
|---|---|---|---|---|---|---|---|---|
| PODW-400E | Tap water, drinkable ground water | AC220V, 60Hzone way, 280W | filter filtration system | PP, ozone, activated carbon | 400ℓ/h | 600ℓ/h | 470W × 400D × 900H mm | 47Kg |
| Model | PODW-400E |
|---|---|
| water supply criteria | Tap water, drinkable ground water |
| power | AC220V, 60Hzone way, 280W |
| water purification system | filter filtration system |
| filter material | PP, ozone, activated carbon |
| drinking | 400ℓ/h |
| Ozone water | 600ℓ/h |
| Product Size | 470W × 400D × 900H mm |
| weight | 47Kg |
Features
Ozone / UV complex sterilization apparatus Advanced Oxidation Treatment of (AOP) to apply the cutting edge in the UV reactor water while dissolving the ozone gas in the water generated by the ozone generator, an apparatus according to the OH radical by irradiation with ultraviolet rays in the ozone photodissociation reaction promoting various reactions take place by all harmful bacteria and pollutants powerful and rapid sterilization, it was able to oxidized and decomposed. Patent Application No. 76 728 and Utility Model Registration No. 434 663 No.
- Step 1 oxygen generator and the ozone generator
- Step 2 dissolver ozone and UV (ultraviolet) Reactor
- Step 3 Activated Carbon Filtration equipment (installation not included)
Use
- Chapter catering, food and beverage manufacturing plants
- Ships, factories, large restaurants
Product Specifications
| Model | Disposal Unit | power | Product Size | weight |
|---|---|---|---|---|
| UOWS-2K | 2.0m2/h | AC220V, one way, 60Hz, 3.0Kw | 700W x 800D x 1275H mm | 132Kg |
| UOWS-3K | 3.0m2/h | AC220V, one way, 60Hz, 3.5Kw | 700W x 800D x 1275H mm | 142Kg |
| Model | UOWS-2K |
|---|---|
| Disposal Unit | 2.0m2/h &377 |
| power | AC220V, one way, 60Hz, 3.0Kw |
| Product Size | 700W x 800D x 1275H mm |
| weight | 132Kg |
| Model | UOWS-3K |
| Disposal Unit | 3.0m2/h |
| power | AC220V, one way, 60Hz, 3.5Kw |
| Product Size | 700W x 800D x 1275H mm |
| weight | 142Kg |

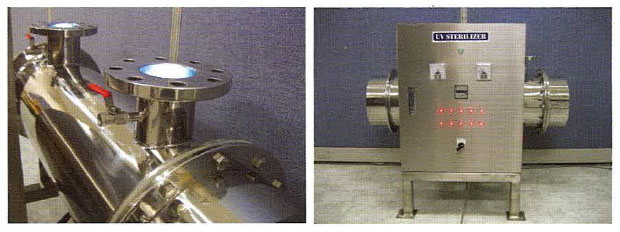

Features
The water to be used by installing to using an ultraviolet lamp, without chemical or heat conduit bacteria, viruses, fungi, filamentous fungi, and kill such as E. coli, safe sterilization that does not leave residues and by-products in water It is. Ultraviolet disinfection device, because kill bacteria at the time of ultraviolet irradiation, recommended that to prevent secondary pollution by installing just before the Shito. Preprocessing (sand, carbon, water that has not undergone Pre-treatment process, since the sterilizing capability is lowered, it is desirable that the pre-treatment in order to increase the transmittance of ultraviolet radiation.
Strengths
- Since the chemical treatment, it is safe.
- Bactericidal effect is excellence.
- It is economical compared to other sterilization.
- Installation is relatively easy.
- no failure and management is very easy.
Use
- Town sewage, sewage treatment plant
- Drinking water, soft drinks, beer, ground water, ETC
- Industrial, pharmaceutical purified water, hospitals, electronics, semiconductor
- Ponds, swimming pools, water treatment plant
- Cooling Tower
Product Specifications
| Model | capacity | Lamp Unit | input / output aperture | Product Size |
|---|---|---|---|---|
| JEUV-2.5K | 2.0m²/h | 39W X 1 | 25A | 980 X 220 X 220 |
| JEUV-10K | 10m²/h | 39W X 4 | 50A | 980 X 450 X 650 |
| JEUV-50K | 50m²/h | 65W X 10 | 80A | 1700 X 600 X 800 |
| JEUV-120K | 120m²/h | 65W X 24 | 150A | 1700 X 750 X 1100 |

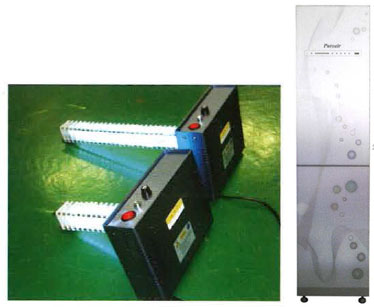

Features
This product is a high-sensitivity broadband spectrum UA lamp composite nano-photocatalytic technology that was arranged is applied, hydrogen peroxide (H202), hydroxyl ions (Oh-), peroxide ion (O2-) and ozone instrument ion (O3-) friendly purification ion to the converted environment in such processes the air in the room.
Use
- Multiple use facility co-housing (apartment, living room, kitchen, toilet)
- School (classrooms, science room, kitchen, bathroom, gymnasium, dormitories)
- Offices, workplaces (offices, changing rooms, workshops, exhaust deodorization, etc.)
- Public Facilities (ships, nursing homes, elderly hospital, theater)
- A multi-use facility (ward, operating rooms, subway stations, department stores, fitness center, karaoke, etc.)
Product Specifications
| Model | capacity | processing volume | Remarks |
|---|---|---|---|
| JEAS-3301D | 300CMH | 100m²/Unit | AC220V, 26W |
| JEAS-2128S | 600CMH | 200m²/대 | AC220V, 180W |
